OFL-V

Action Momentary
Electrical Ratings 6A-250V AC
Built-in switch Micro switch type V
Circuitry 1c
Supplied Cable VCTF0.75X3CX1M
Operating Force 27N
Degree of Protection IP30
Housing material Aluminum die cast
Color Green metallic
Weight 450g
Applicable protection cover OFL-CS
Country of origin Japan

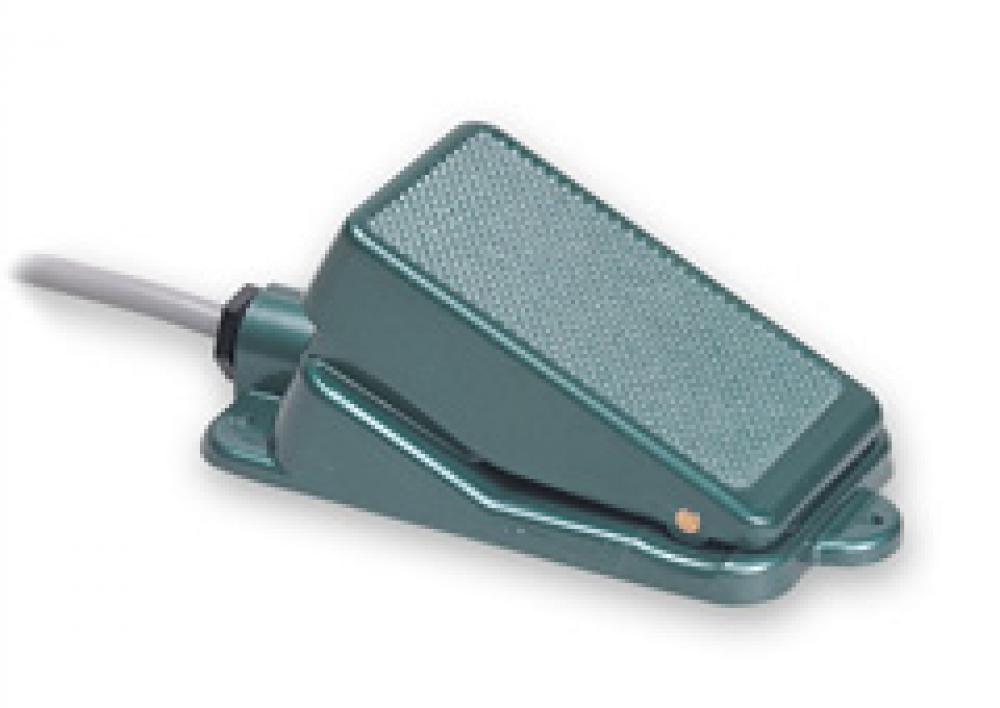

OFL standard type is die cast aluminum made Foot switch, most generally used in a wide area.

【Applications】
Industrial equipment ( Metal forming machine etc.), Transportation vehicle (train, bus), Woodworking equipment, Sewing machine,
Installation equipment, Medical equipment, Masuring equipment, Public welfare device, other general equipment, etc.

Drawings
Circuit diagram

Option

【Protection cover】

Protection cover for preventing malfunction by falling objects.

  • OFL-CS
  • Material:Stainless steel
  • Weight:1,310g

Applicable series

  • ・OFL
  • ・M4
  • ・S5
  • ・S6
  • ・M6
  • ・S7
  • ・H
  • ・P

Explanation of type

  • Add CS to end of type
  • ※When placing order, instruct the exact type of footswitch using at present due to mounting screw differs according to each type.
